Building on the Codex Harness — Dominik Kundel, OpenAI

All right everyo- hi everyone. Um, I want to start with a quick raise of hands. How many of you have built your own agent harness? All right. How many of you, um, feel like it's way too intimidating to build an agent harness? Okay, cool. So, uh, over the next 18 minutes or so, I wanna talk to you all about how you can actually build on top of the Codex Harness, and hopefully make it a bit easier and less daunting for you to, um, actually build your own interfaces on an a- on an Agent Harness,

and hopefully also a little bit fun. Uh, my name is Dom. I work, uh, at OpenAI on developer experience, specifically for Codex. Um, and I have one more raise of hands. I promise I'm gonna give you all a break. Um, but how many of you have heard of the Codex App Server? All right, this was a bit of a trick question because if you attended the keynote yesterday, all of you should have raised your, your hand, um, otherwise you probably didn't listen to Roman. Um, but, uh, we talked briefly about it yesterday, but we didn't really explain what the app server is.

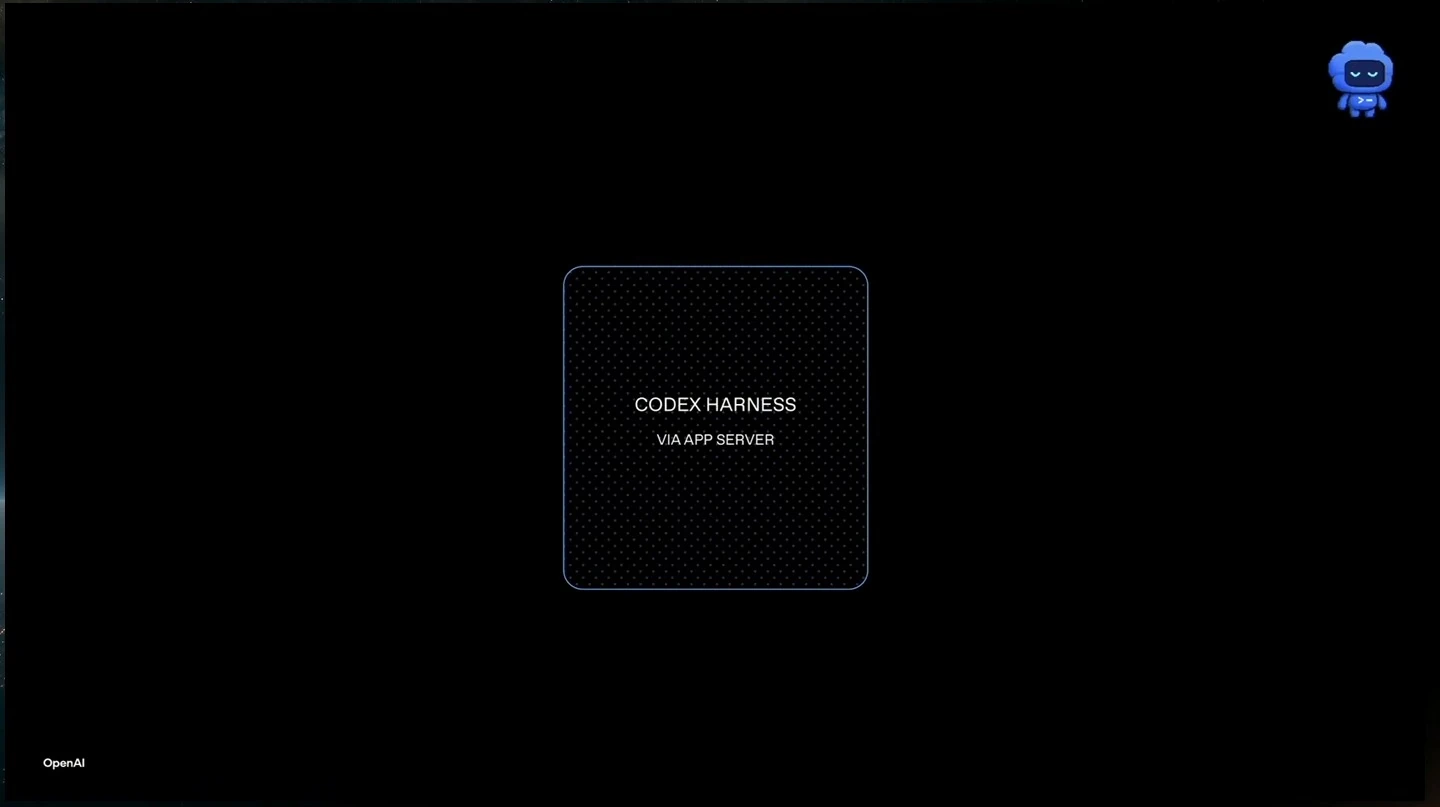

Um, so the app server's actually the protocol that wraps the Codex Harness. Um, if you've ever looked into something like Agent Client Protocol, this is a very similar concept where basically we have a protocol that allows you to directly build on top of the, uh, harness and deeply integrate into it. And we'll talk a bit in the talk about what the differences are between, uh, App Server and ACP. Uh, the big thing here to keep in mind is both the Codex Harness as well as the App Server itself are open source, so

we're gonna cover a couple of different things on how you can engage with it. Um, but more importantly, we're gonna both dive tomorrow in the afternoon into how a couple of these things work behind the scenes. But you can also always just ask Codex to read the repo and dive really deep into it. It's Apache 2 licensed, so feel free to fork it, do it, make it your own and have- have fun with it. You can even connect it to any other model provider as long as they have a responses API capab- uh, compatible API. Uh, we even have, uh, convenience

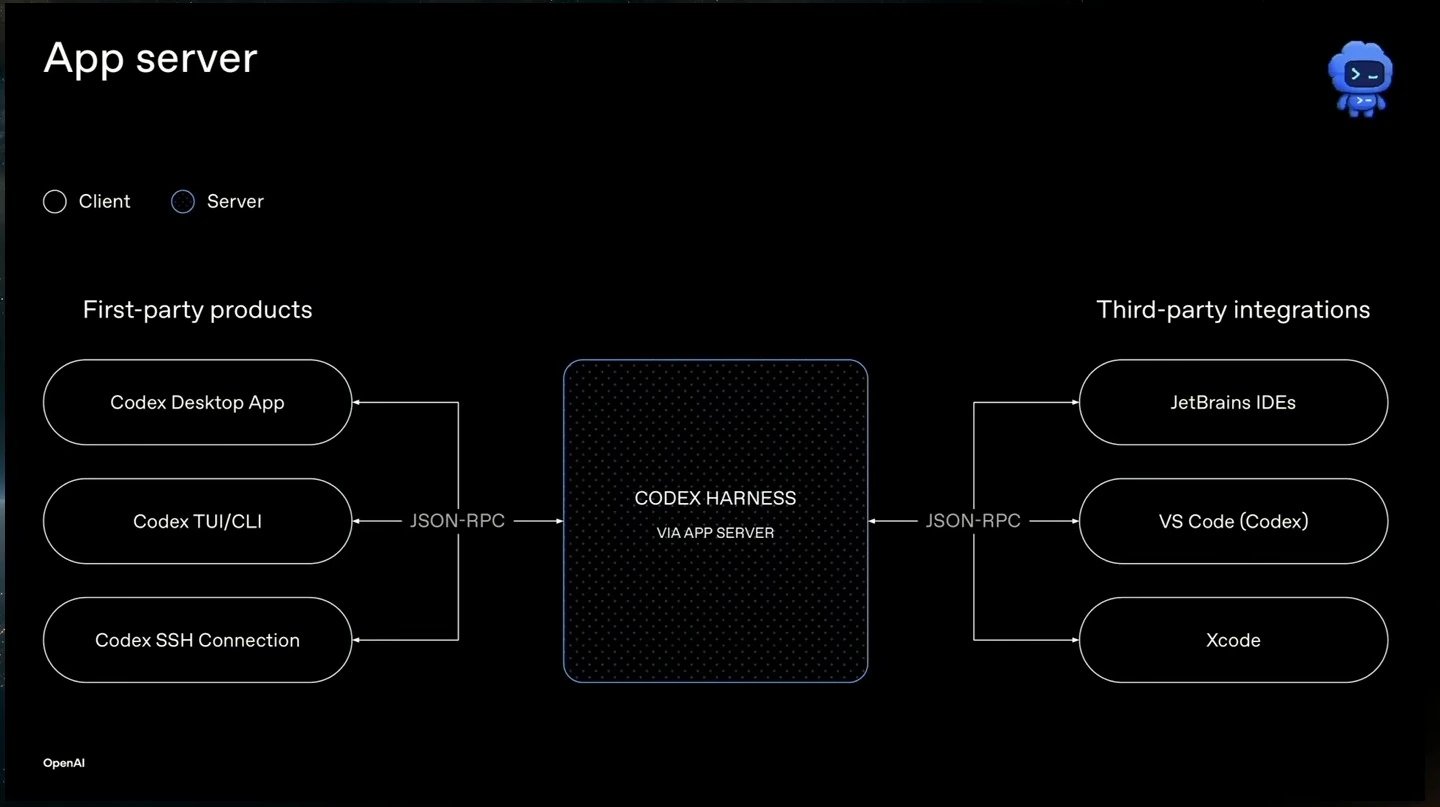

settings to connect it easily to LM Studio or Ollama. Um, in terms of how it works, the App Server protocol is a JSON RPC style protocol that we actually use to power the Codex app, the IDE extension, uh, our VS code extension, so all of our first party interfaces, but also third-party ones. So if you've ever used Codex through Xcode, JetBrains, IDEs, um, or even some open source projects like Theos T3 Code or Remotex, you can actually... Uh,

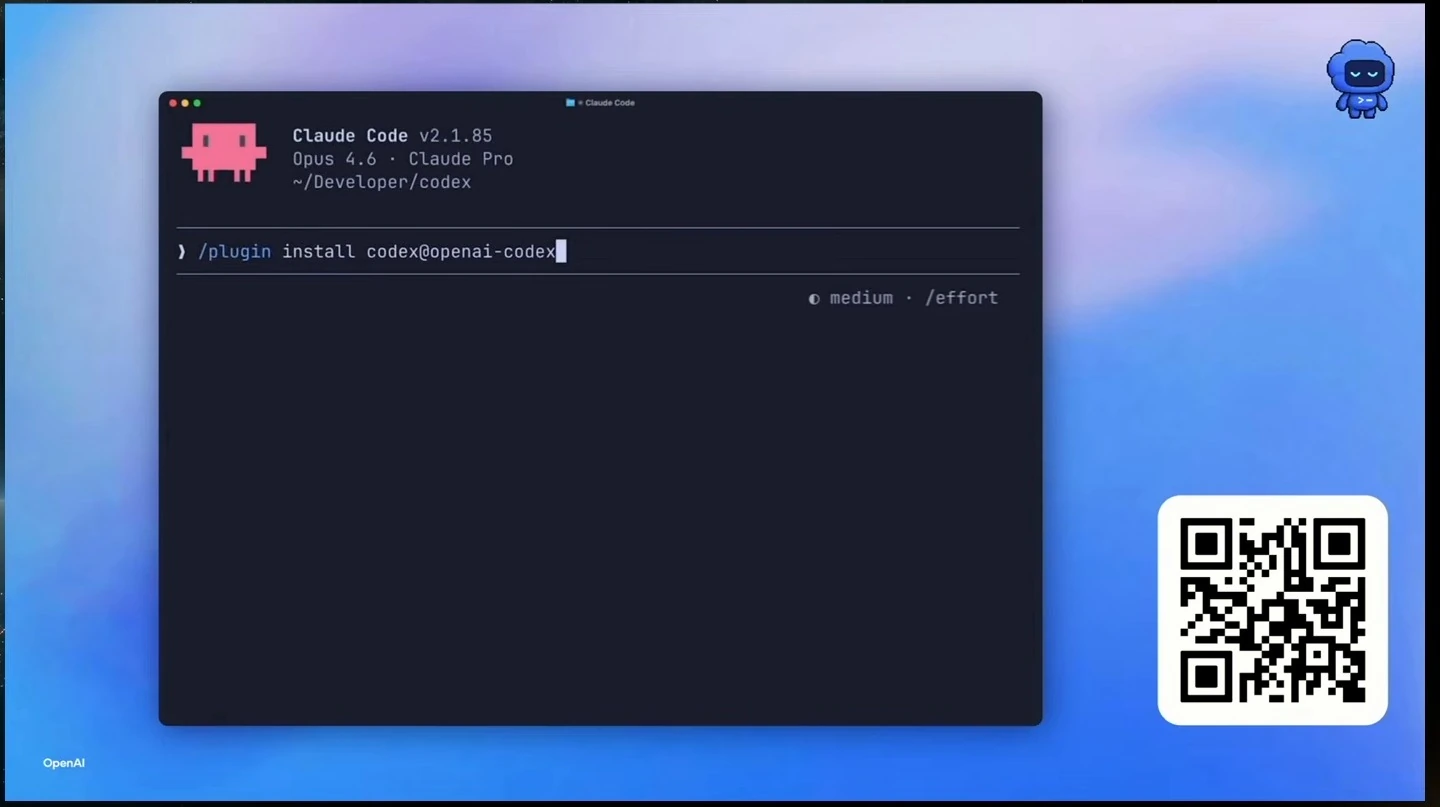

all of these are powered by the same harness, the same app server. We even used it earlier this year to put Codex into Claude Code, um, using that same app server. So if you're still on u- uh Claude Code, uh, and you wanna use Codex from there, either to have it review your code or, um, you know, pass off tasks to Codex to handle it, you can actually use that plugin, and it uses that same app server, that same harness behind the scenes. Uh, if you've looked into things like ACP,

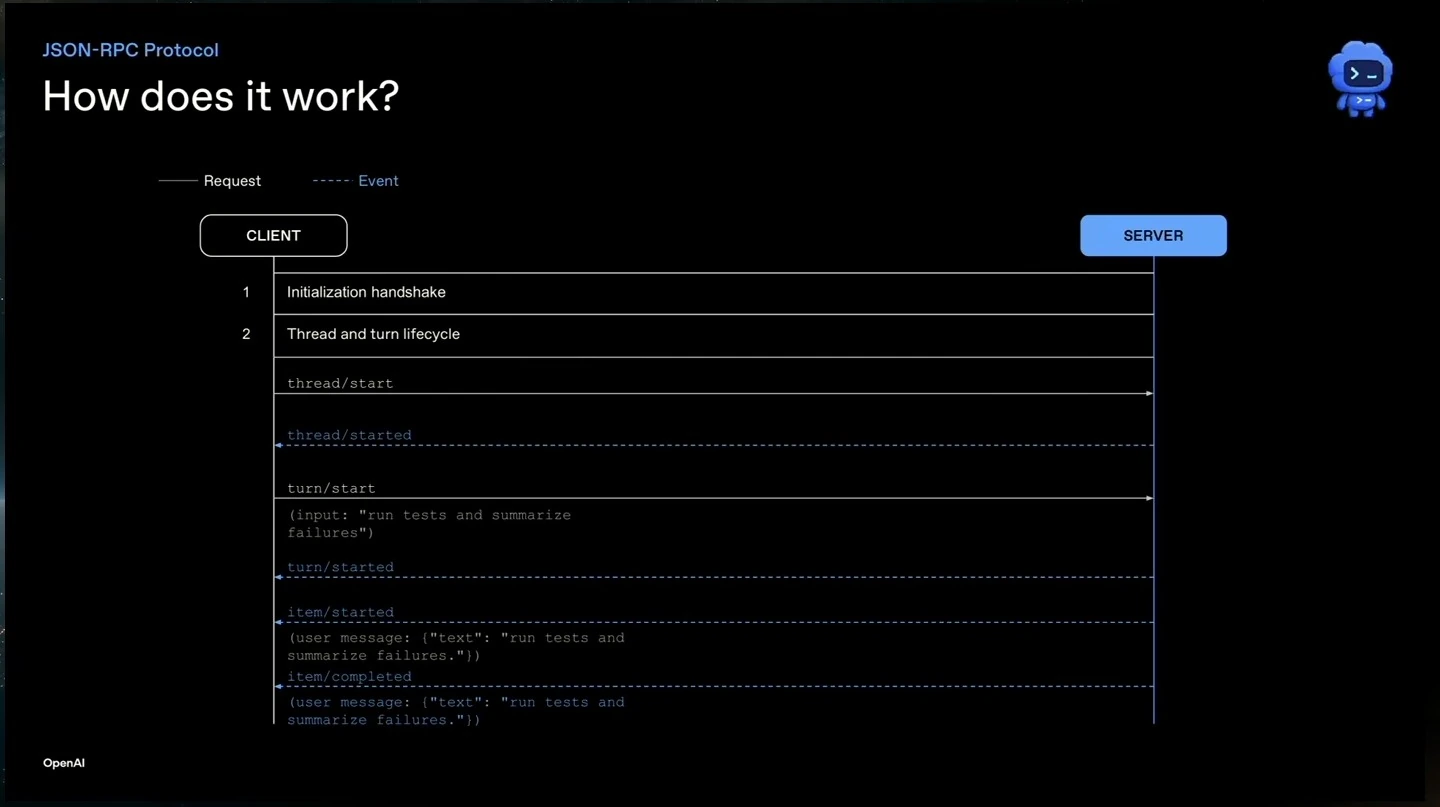

this should seem pretty familiar. At a high level, basically the app server, the way it works is we're gonna send messages between the client, which is the application you're building, and the server, which is the Codex App Server, uh, to perform different actions and receive events. But rather than showing you a bunch of hypothetical messages, um, I went a bit overboard and actually built a little inspector that intercepts all of the events between the real Codex app and the, uh, Codex App Server, so we can look at

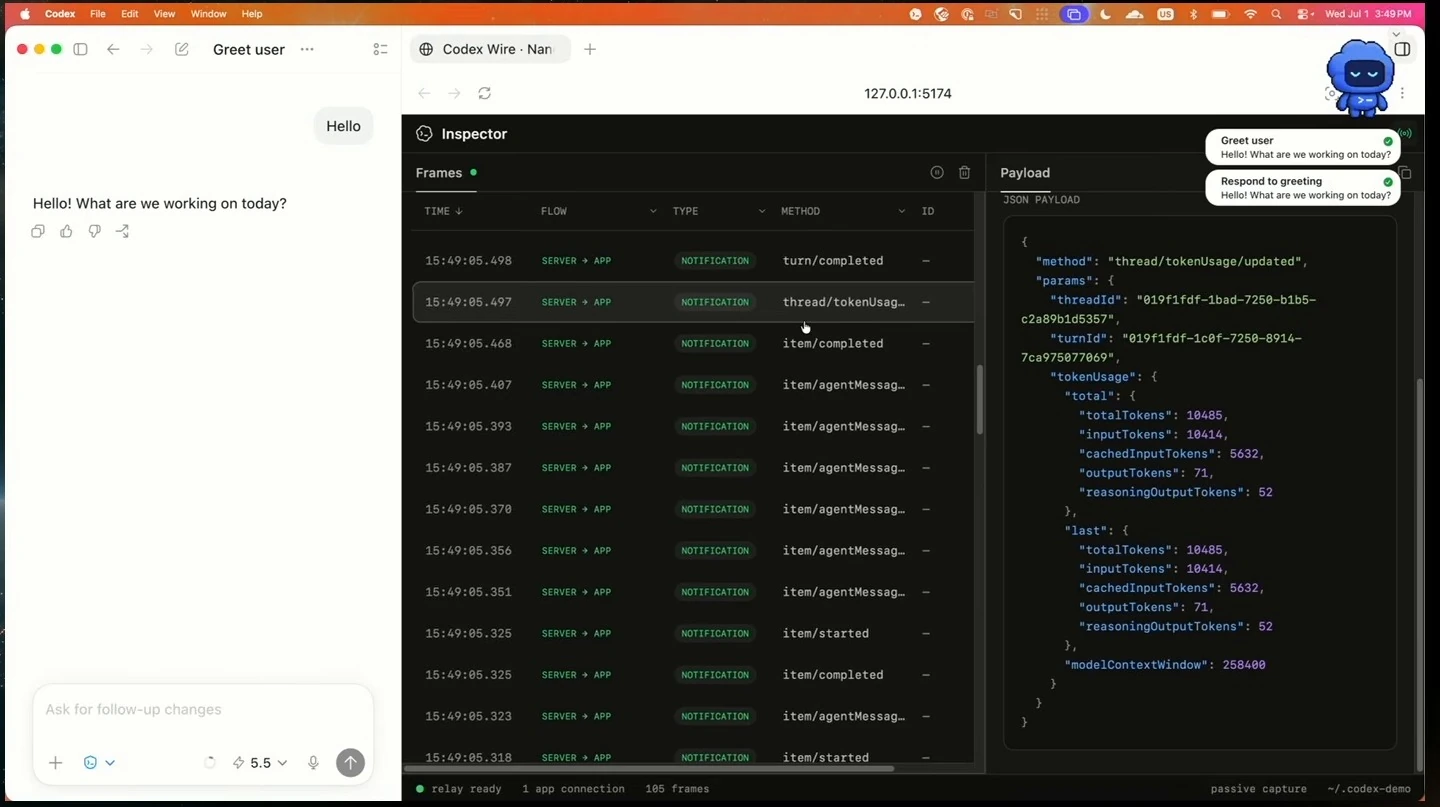

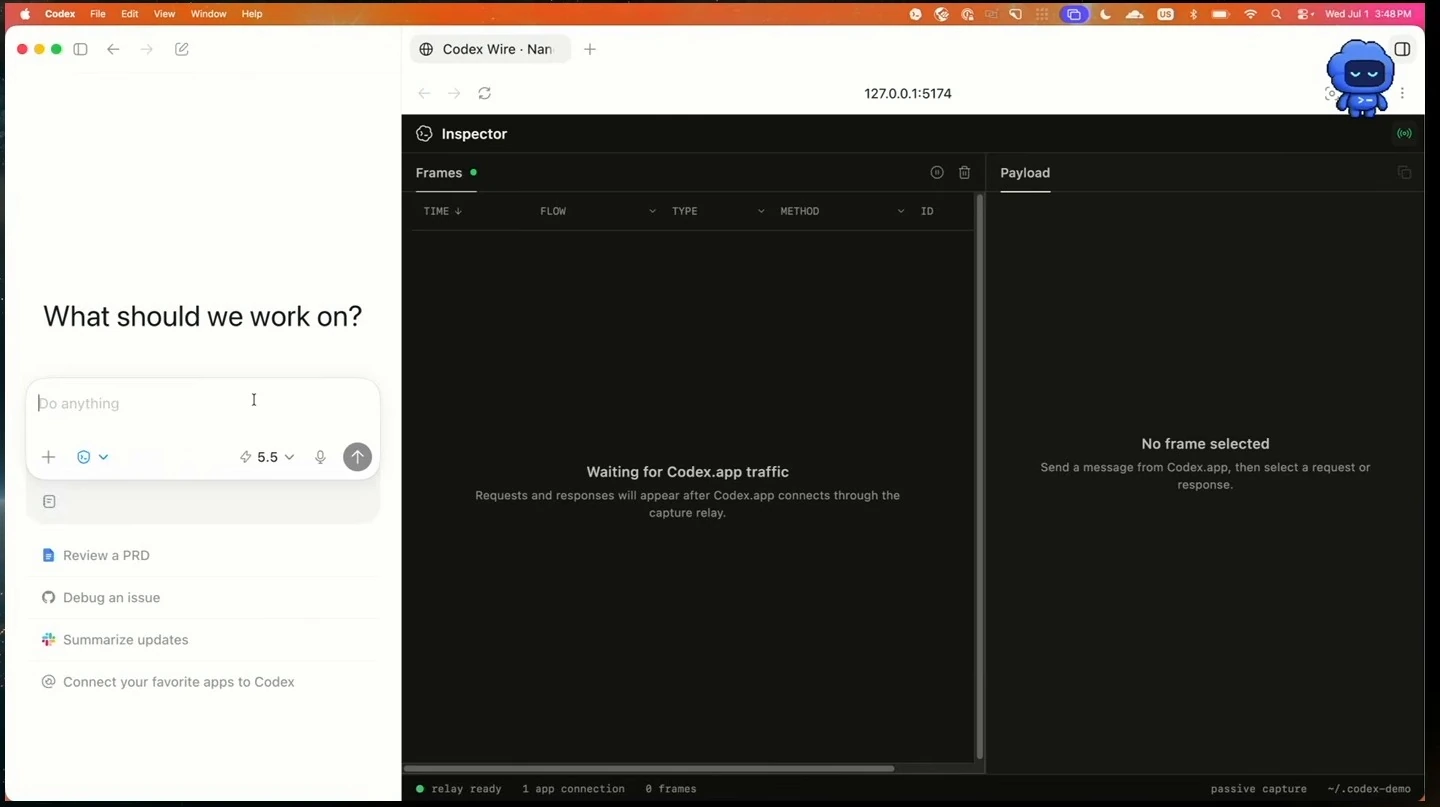

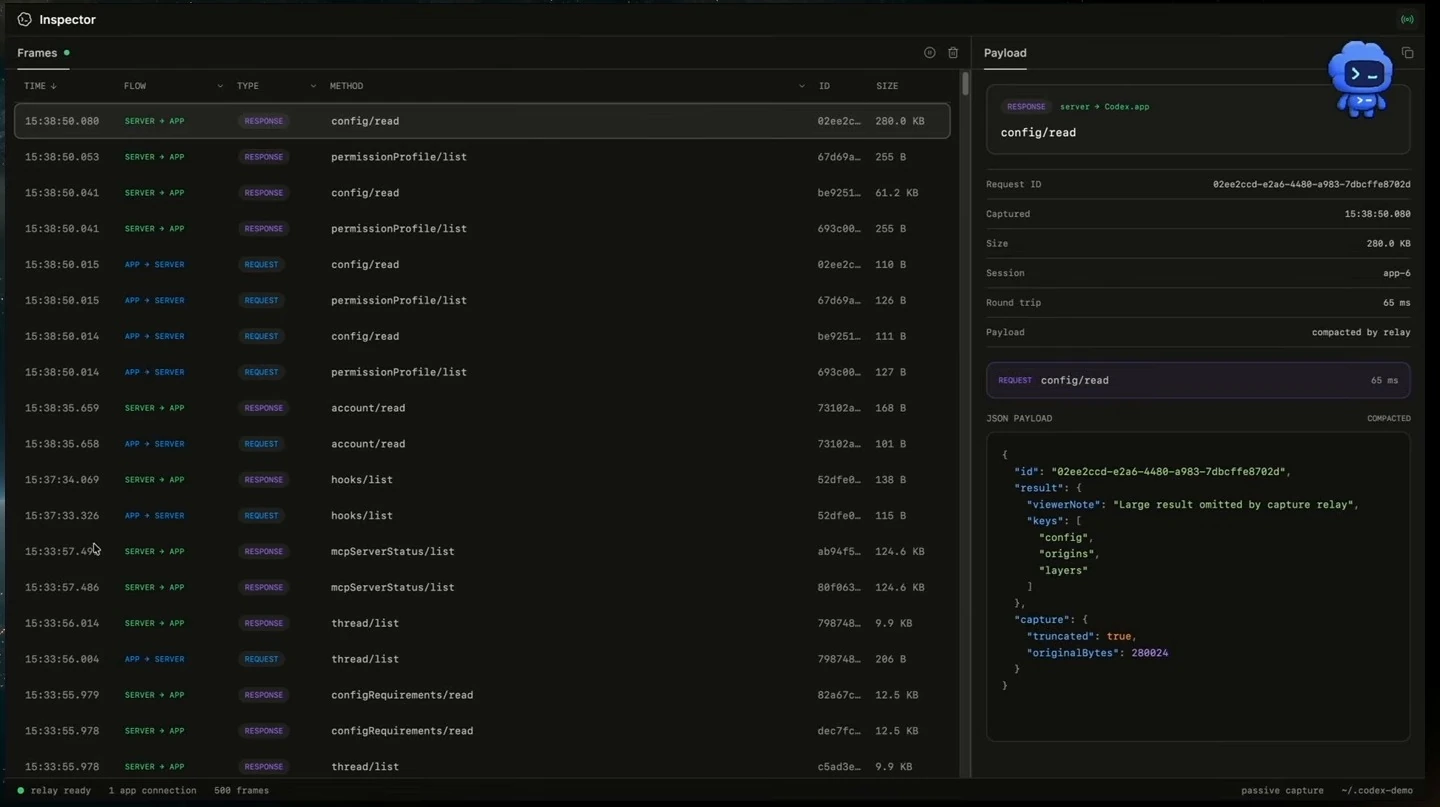

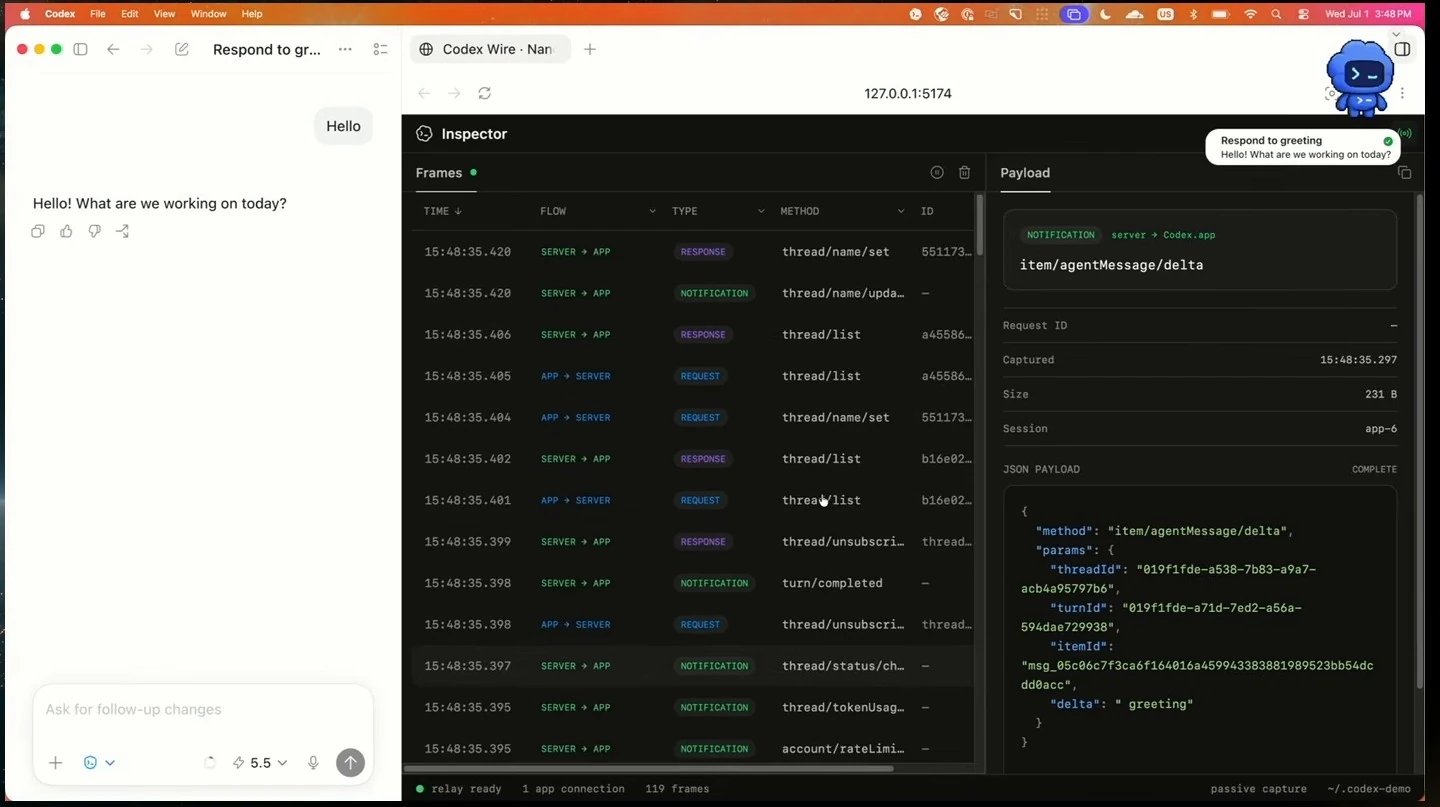

some real events. Um, let me actually switch over here to the Codex app. So I loaded up that same inspector in the, um, in-app browser here of the Codex app. And so if we send a message, we're gonna see here a bunch of different events coming in. Um, this might seem daunting at first, but as you're sort of going through some of these messages, a lot of this should feel relatively familiar. So, um, we can look through here, um,

some of these might be a... Let me do this once more. Um, I think I had some old ones buffered, so just gonna start a new one. Um,

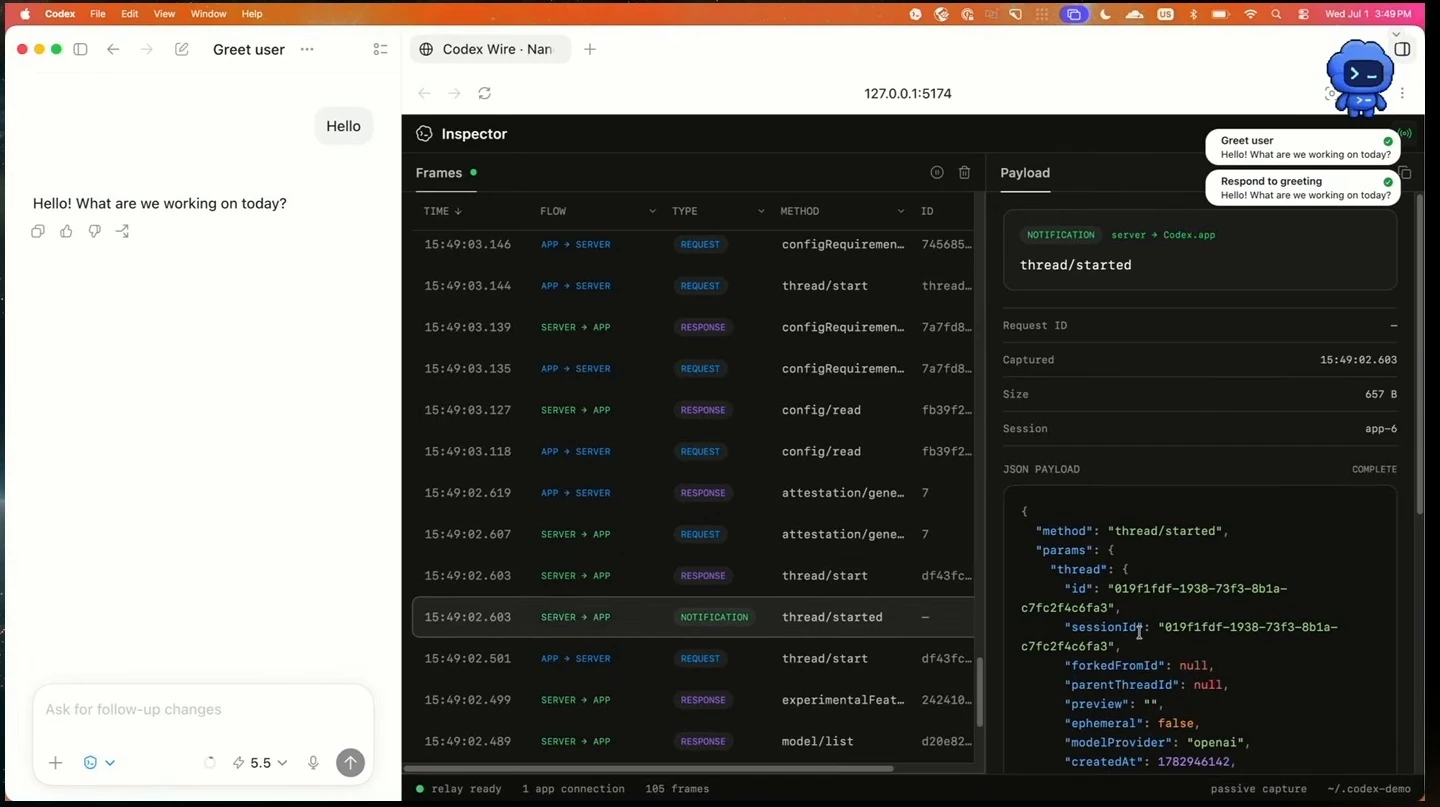

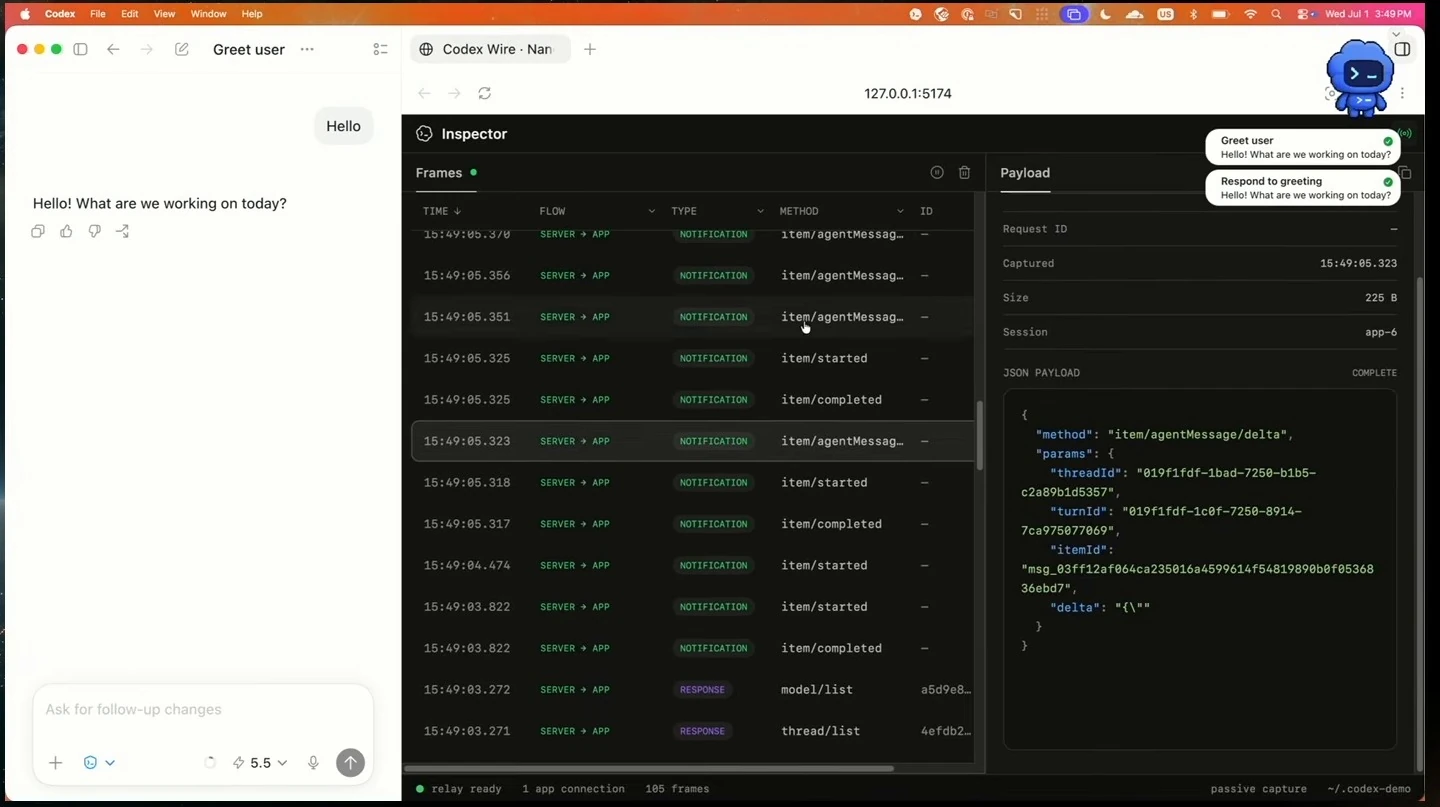

there we go. Also, don't mind my Codex pad up here. Uh, but you're gonna see like different messages from like threads being started, uh, with sort of your different configurations of what is actually happening, what project are we working on, uh, over to configuration reads, um, where is new threads being started, and then here's like some of your delta messages of like d- uh, data actually being streamed in.

And so there's a lot of additional information that you can find here. And one of the big things that makes this protocol so flexible is that we're really exposing anything that is really in the app, um, a key functionality. Meaning if we're streaming in things, we're doing file search, all of that information is actually handed back and forth between the app server and the, and the app. And so if you're building your own harness, uh, harness integration, your own client, you can actually leverage, uh, the same capabilities.

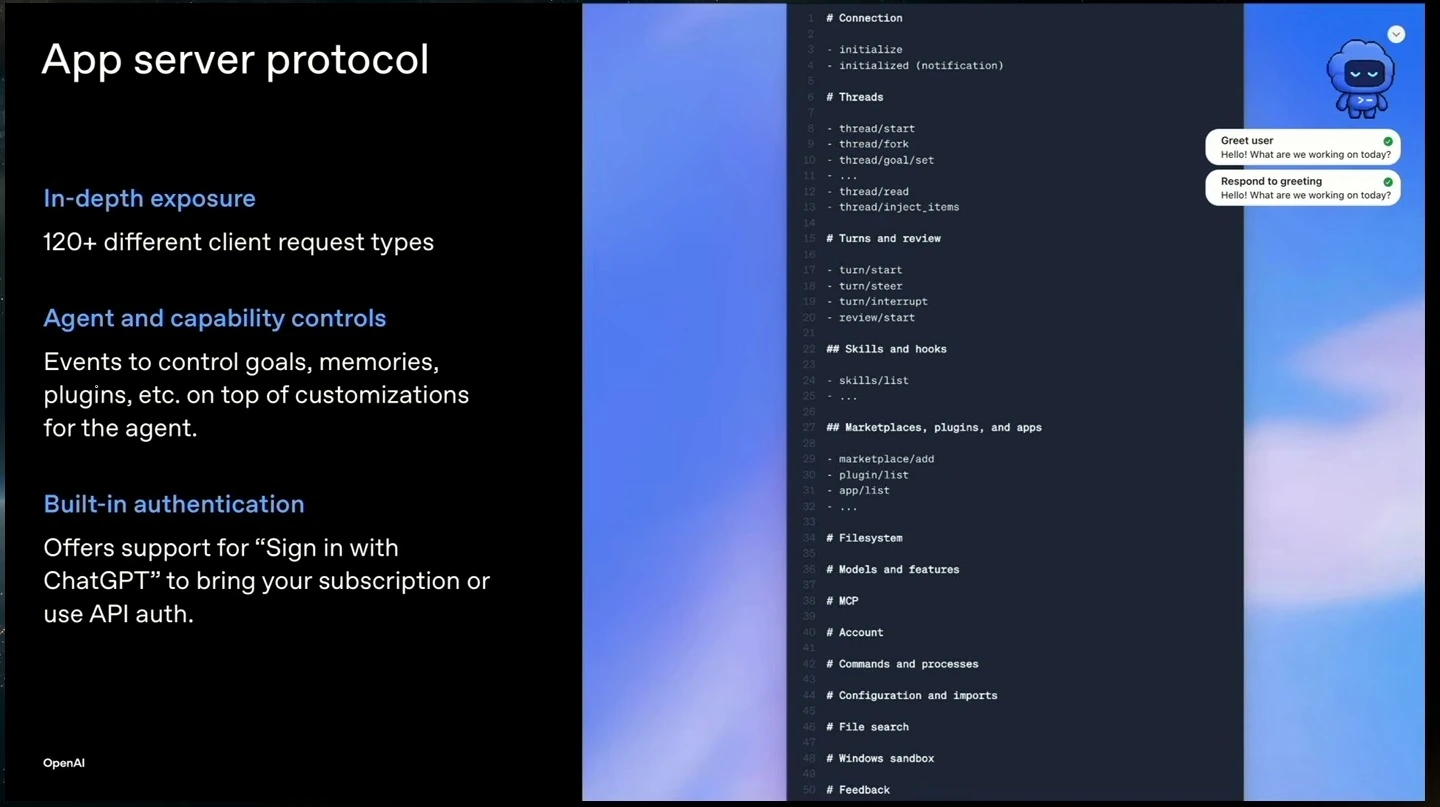

In fact, we have right now over 120, um, so different client, uh, client messages that we continuously add more to. Um, and this goes from everything from initialization, where you're able to configure some of the more like specific things to your client, um, over thread modifications and, uh, turns, which are sort of the things that you would assume are like the most classic things, but also stu- uh, stuff like setting a goal if you wanna implement your own version of goal

mode- Um, and listing plugins, doing all of the different other aspects that you might see in the app, all the way to things like file search and modific- uh, modifying the file system. So you can really have that full access. We also try to make it easy so that you can, uh, configure the underlying agent, and that's a bit different to ACP, where it's a more s- more, uh, generic protocol. We can actually give you more control over the individual parts of the harness as well through the protocol, and we'll look into that in a second. The other thing that is ex-

exciting for a lot of people is you can actually, you- if you're using this protocol, you can have sign-in with ChatGPT as part of that, meaning that if someone is using your app, they can still bring their own ChatGPT subscription, and it goes off their Codex, uh, use- usage limit. So if you've used something like T3 Code or similar, you're actually using that. In terms of customizing the agent, the mo- the biggest two things then you might wanna look at if you're building on top of this app server is developer

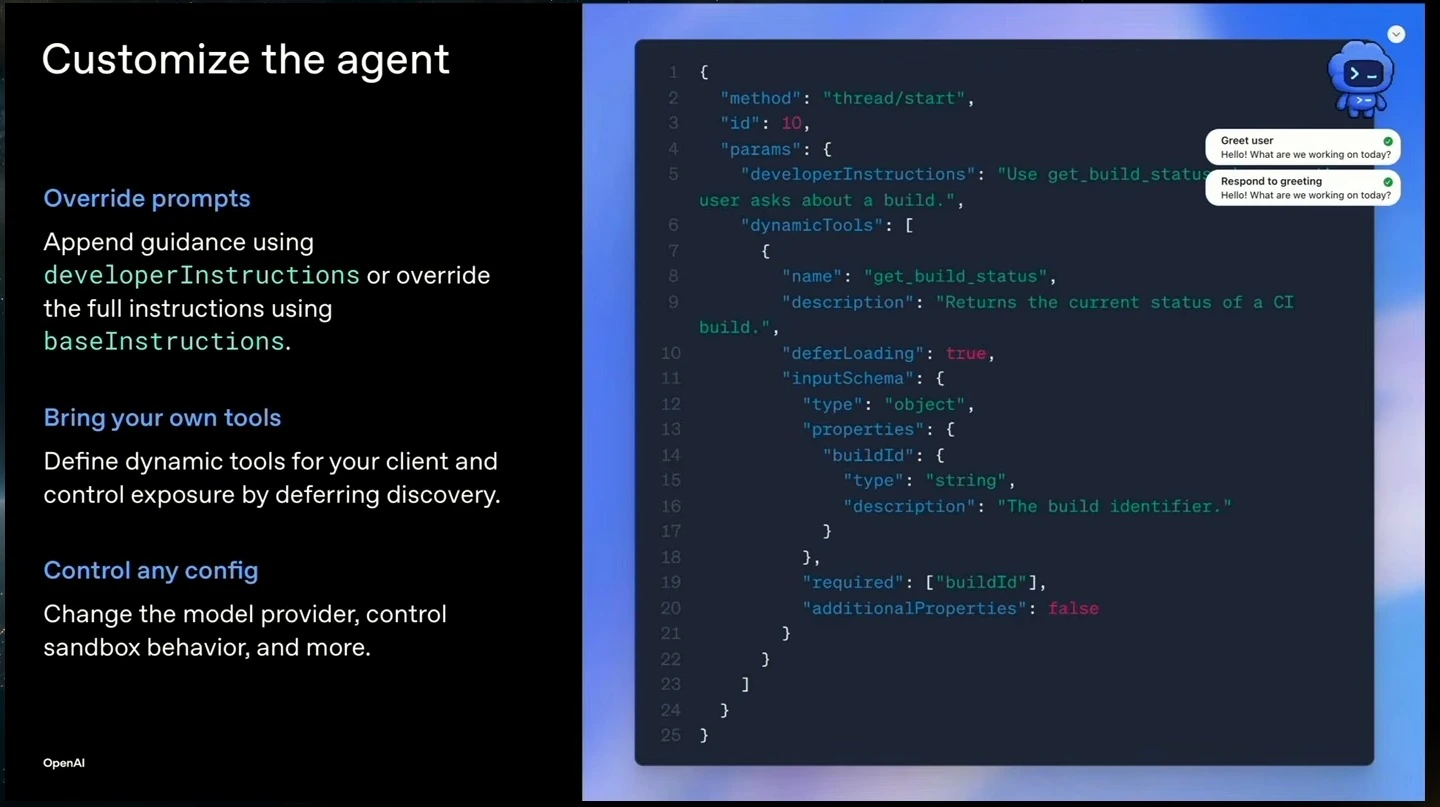

instructions as a way for you to augment the instruction, the system instructions of the actual app, as well as, uh, bringing tools. So with developer instructions, we're actually appending on top of the system prompt of Codex. You can look at the actual system prompt of Codex as well. It's in the repo. Um, but we generally recommend that you actually append to that using the developer instructions. That way, you're still leveraging all of the work that we put into tweaking the prompts for the individual models, while still

customizing it for your specific use case of the harness. This is, for example, what we do when, uh, you load up the Codex app, since there's some functionality that is, uh, more specific for the app over, like, the IDE extension or CLI, for example. And then the other part of this is dynamic tools, where you can expose, uh, additional functions that you wanna, uh, that wa- you want the agent to be able to use. You could use MCP or other things similar to what you would do in, like, the agent client protocol, but you can also just

straight up define tools, and you can actually mark them as deferred loading, which means that rather than injecting them into the system prompt, it, uh, allows Codex to use a tool search tool, which we'll cover more tomorrow in the other session. Um, but it allows it to y- find these tools through tool search rather than polluting the, uh, overall context window. And then on top of that, you can even, on a per-thread basis, modify any other configuration that you might have for your agent. So think about,

uh, setting a different model provider, choosing a different model, or even doing fine grain control on the sandbox, like what network connections, uh, it should have access to or what files it can modify. In terms of how you can actually use the app server, the first thing to, uh, know is that the app server actually comes as part of the Codex CLI. It's the same binary, so if you have the Codex CLI already on your system, you can just, uh, use that to spin up the app server right now.

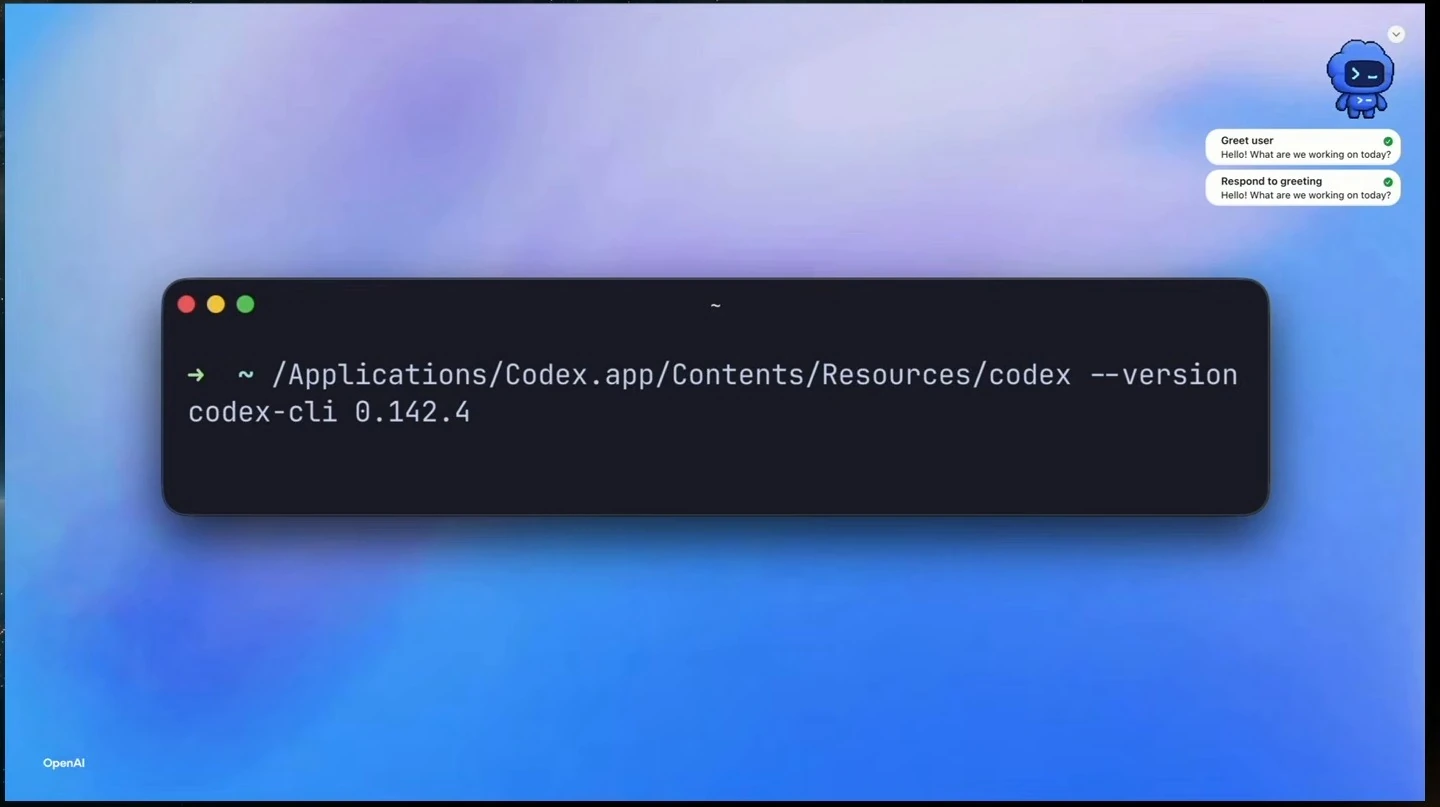

But you can also look at how we're, for example, shipping it with the Codex app. So the Codex app has the, uh, binary as part of the actual bundle. So if you're looking into your installed Codex app, you should find it in the contents of that bundle, and it changes with every version of the app that you're updating. We're shipping a new version of the CLI behind the scenes. On Windows, we actually ship with two versions of the binary, both the Linux compiled one and the Windows one, so that if you're loading the app in WSL mode, it

uses, uh, the Linux one, and otherwise it starts up the app server in Windows native.

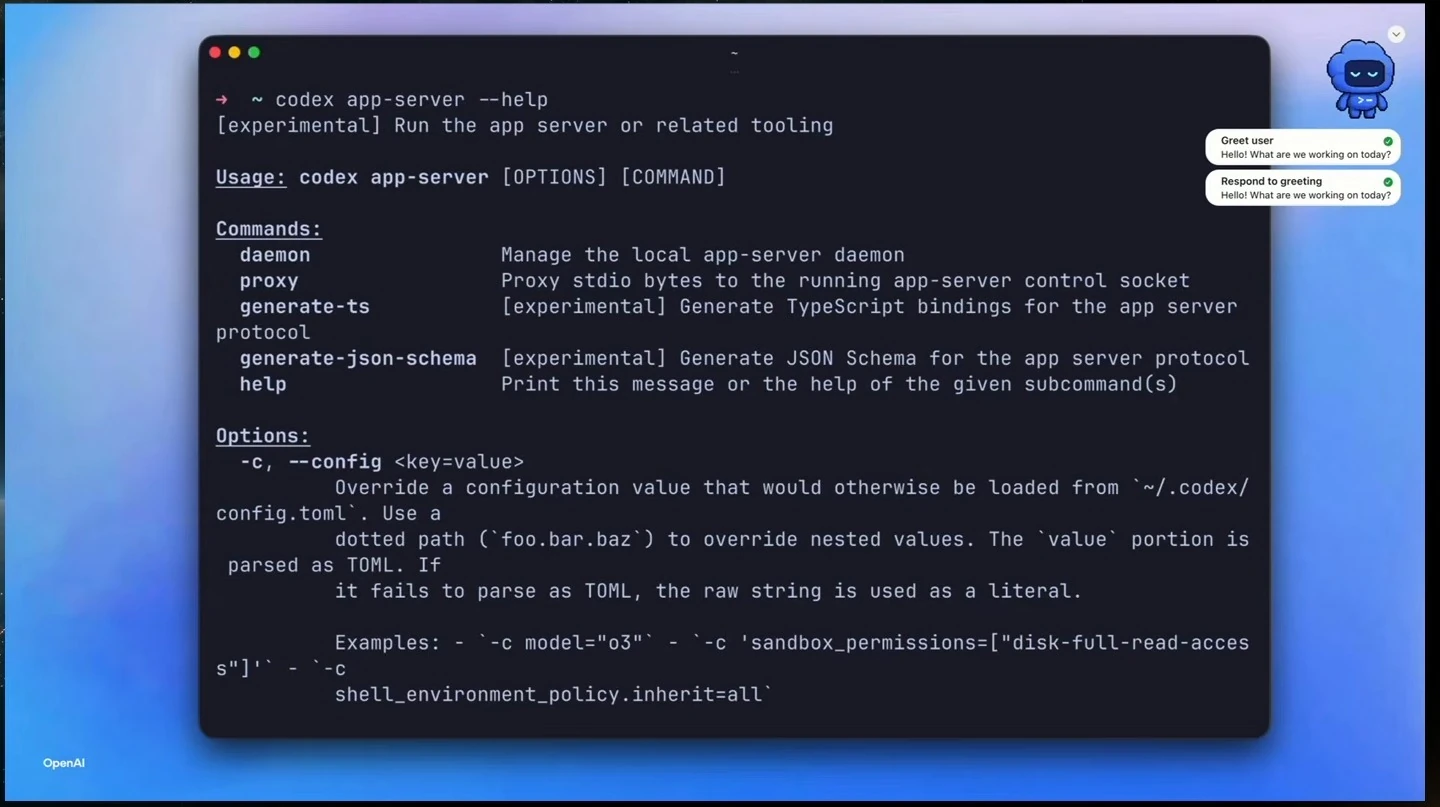

Um, from here, you actually have a lot of different, um, additional convenience functionality. One, you can have Codex generate you, for that particular version of the app server, the TypeScript bindings or the, um, JSON schema, which is incredibly helpful since this, uh, protocol regularly changes between versions, which is also why you actually wanna bundle it with your application, which is what we're doing with the Codex app, so that you have full control over what are the actual capabilities of the version that you're

expecting to build against. Um, in terms of protocols, you can spin up the app server both using standard input output, so stdio, or you can use WebSockets. It's gonna depend on your use case, and honestly, the easiest way to figure out what works better for you is probably to just ask Codex. Um, from here, there's two ways that you can integrate it, um, most easily. The first one is the Python SDK that we recently re- uh, released. It handles a lot of the life

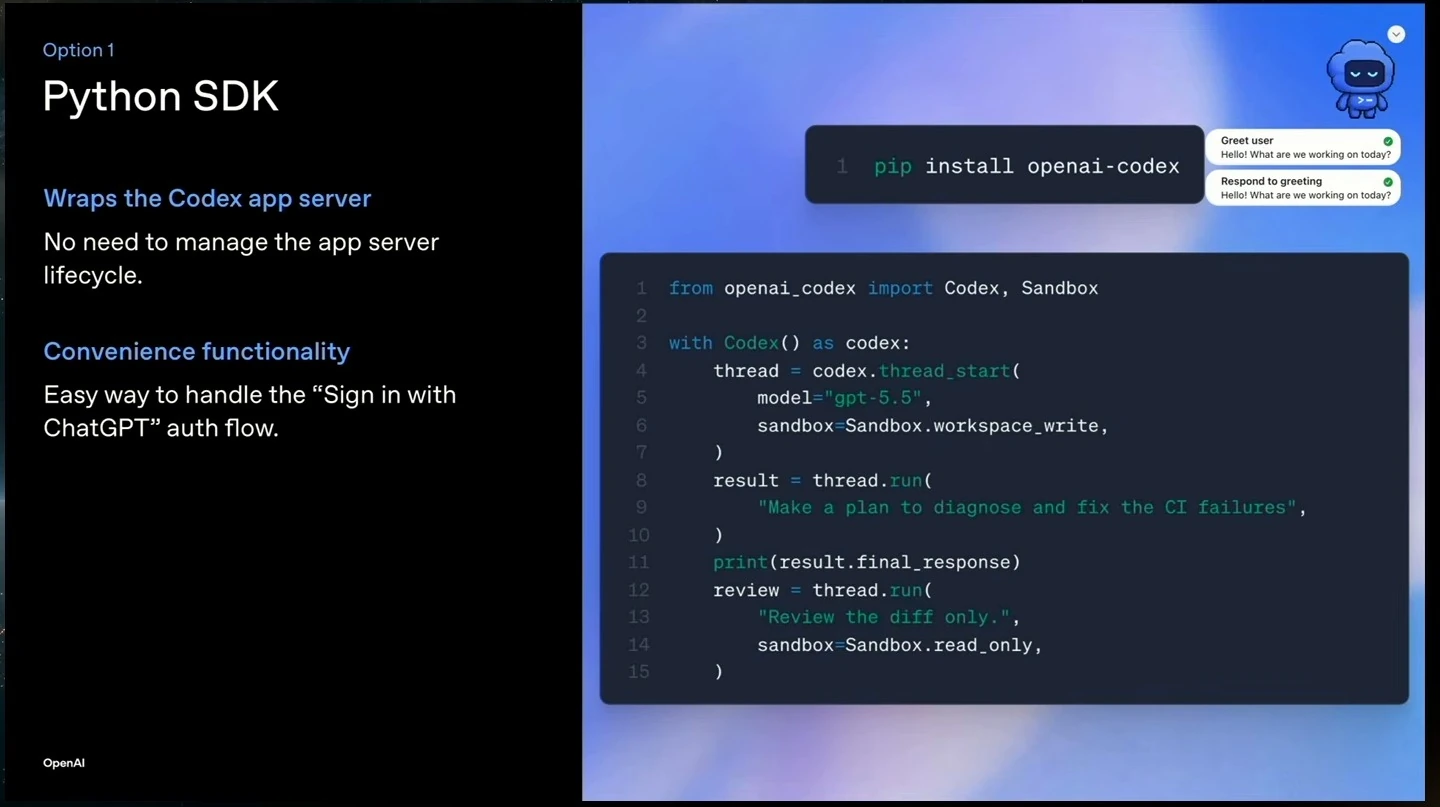

cycle management for you, so you don't have to deal with any of that. And then on top of that, it makes it a bit easier for you to, like, integrate things like sign-in with ChatGPT, and gives you, like, a familiar interface. That being said, we are at an AI engineer conference, so, um, probably most of you are gonna choose option two, which is you just ask Codex. So unsurprisingly, Codex is incredibly good at implementing this protocol, and you largely just have to point it at, um, the documentation. In most cases, you don't even have to do that, but it

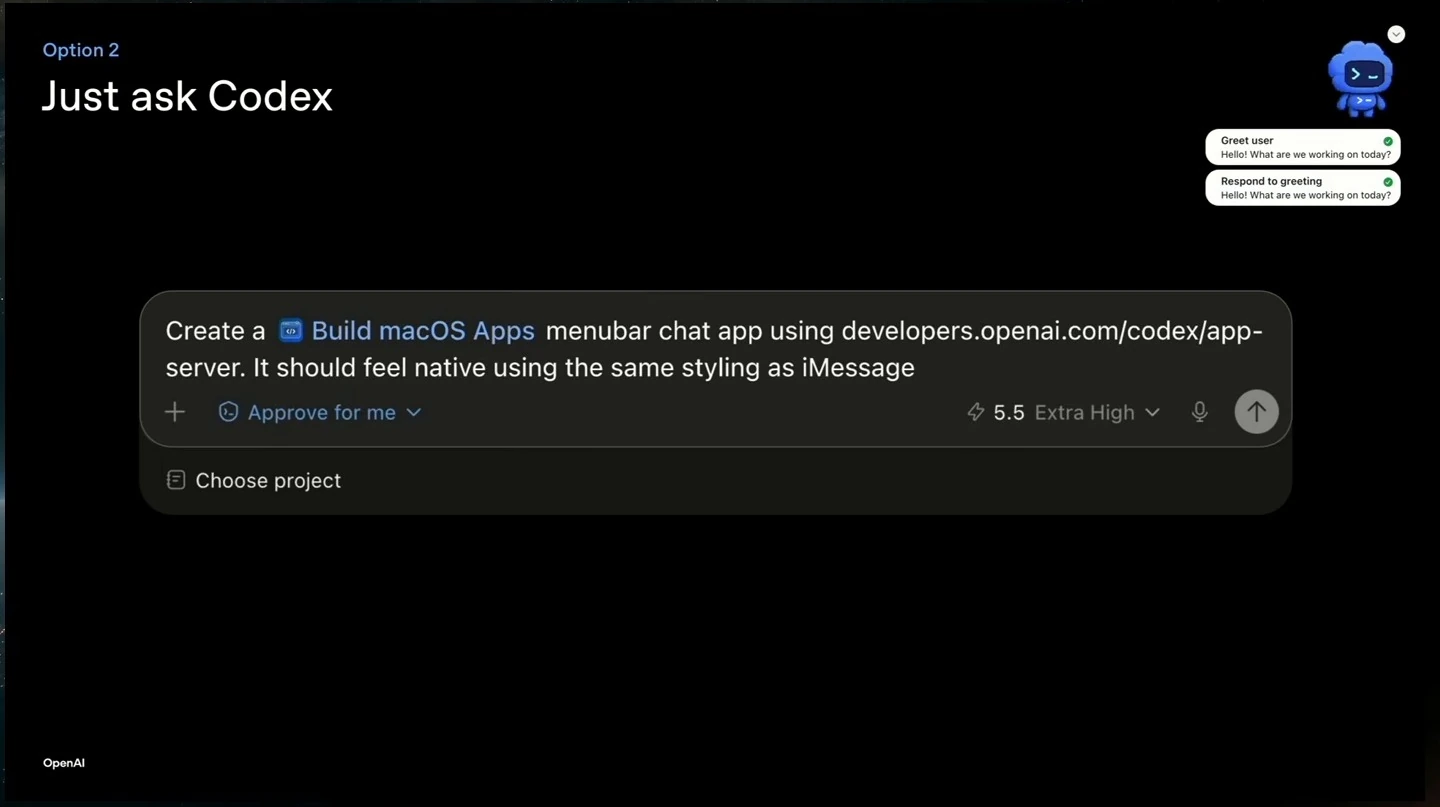

sometimes helps it to nudge it. Um, and from here, you can combine it with any of our plugins, like build macOS apps, um, if you wanna quickly spin up something or completely go wild. I used it, for example, to build a client using, um, Visual Basic, uh, to have a, like, truly Windows native app. Um, and it did it largely in one shot. So, uh, you can build really impressive applications with this in a fairly short amount of time without you having to learn all the nitty-gritty parts of buil- building an agent.

The most interesting thing for me with this a- uh, with this app server though is that you're not limited to sort of the classic agent chat interface. You can really be creative, whether it's, um, you-- how you actually, like, trigger it inside of your UI and your existing app, whether you're running it in the background, whether you put it on weird hardware like Maddie does all the time, um , or if you're like me, you think about, "How can I shove this into video games?" Um, and recently, um, I think

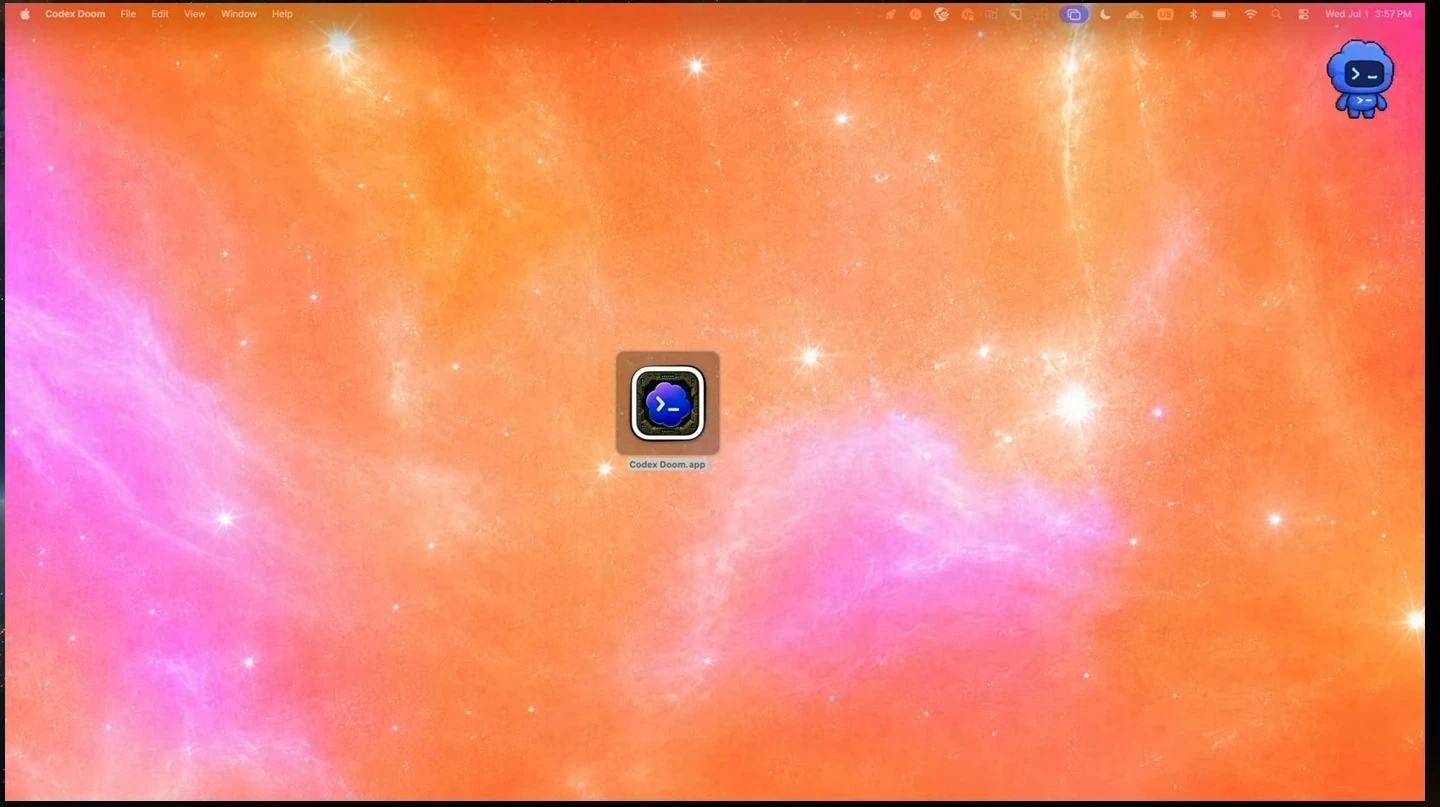

like a month ago or so, I thought about, how can I actually run Codex inside of Doom rather than running Doom inside of Codex? Um, and I figured, let's actually do that live, and I'm gonna dismiss a couple of messages here. Uh, so I have this Codex app, Doom version, and I boot it up in the wrong window, so let me pull that over.

There we go.

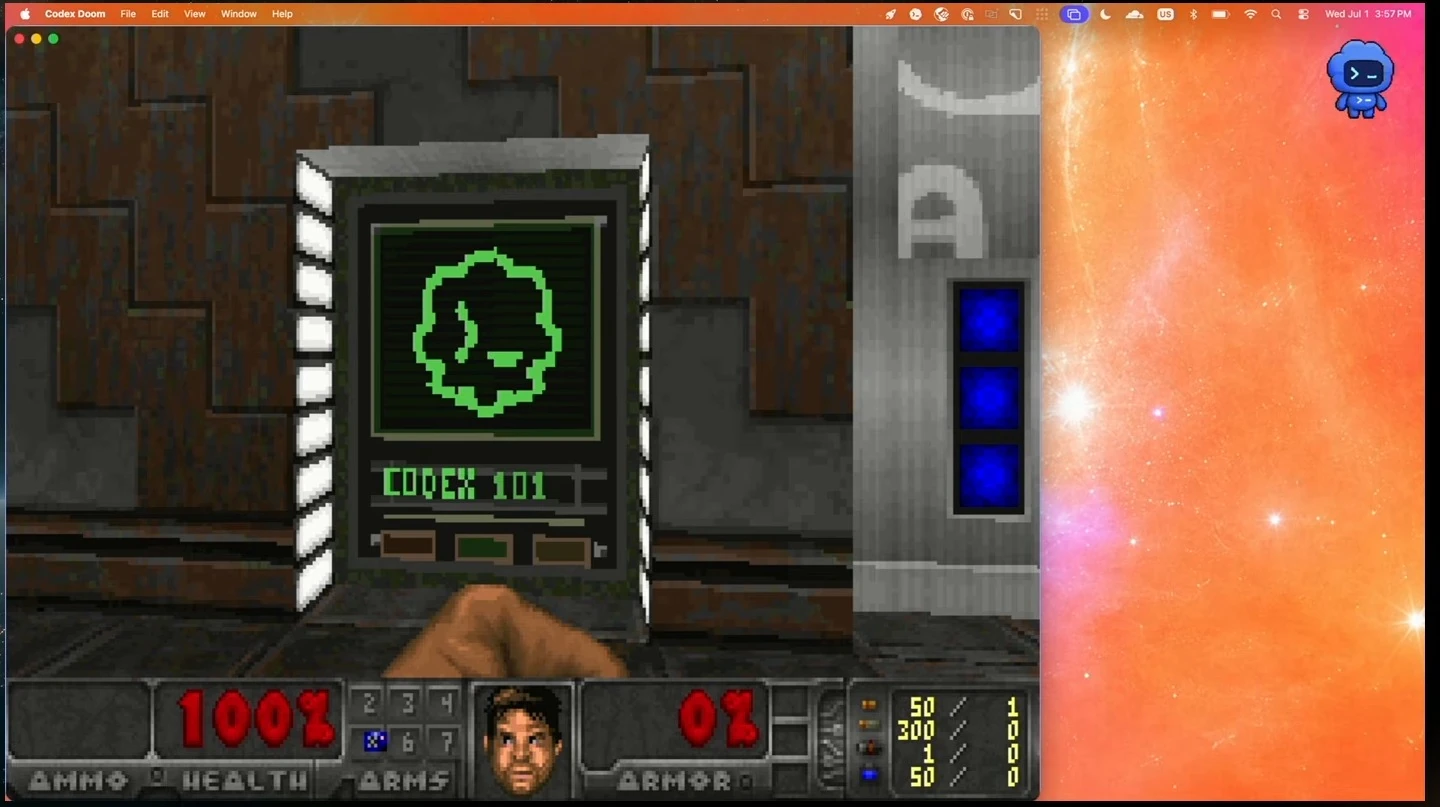

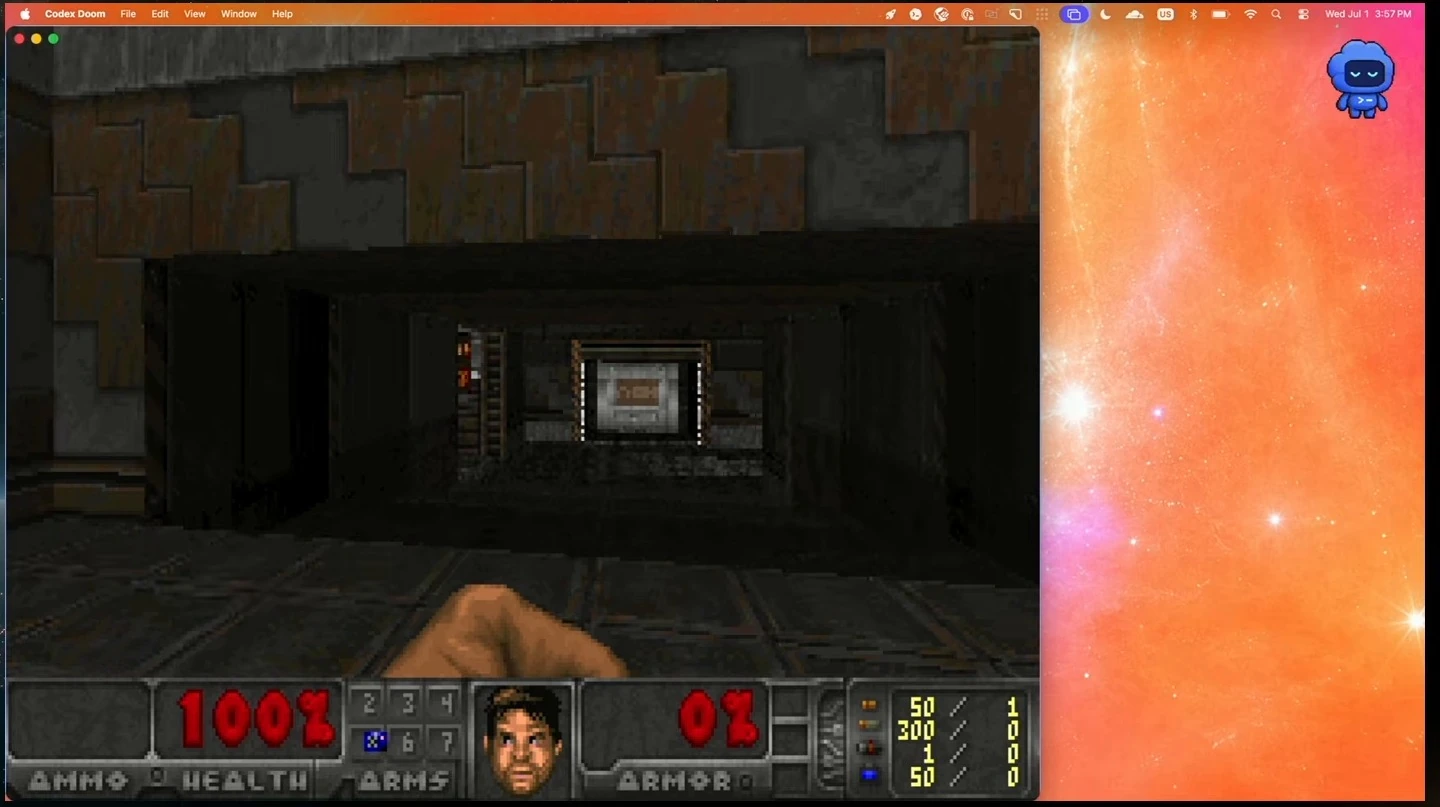

So this is... Oh, it messed up the controls. My bad. One sec. Something with this, like, dual monitor setup sometimes messes with the control capture. So let's hope that this works better now. Yep. Okay, so this is, um, an Electron app that has, uh, uses Cloudflare's Doom WASM renderer. Um, and it's, uh, so the most of the game engine itself is implemented in,

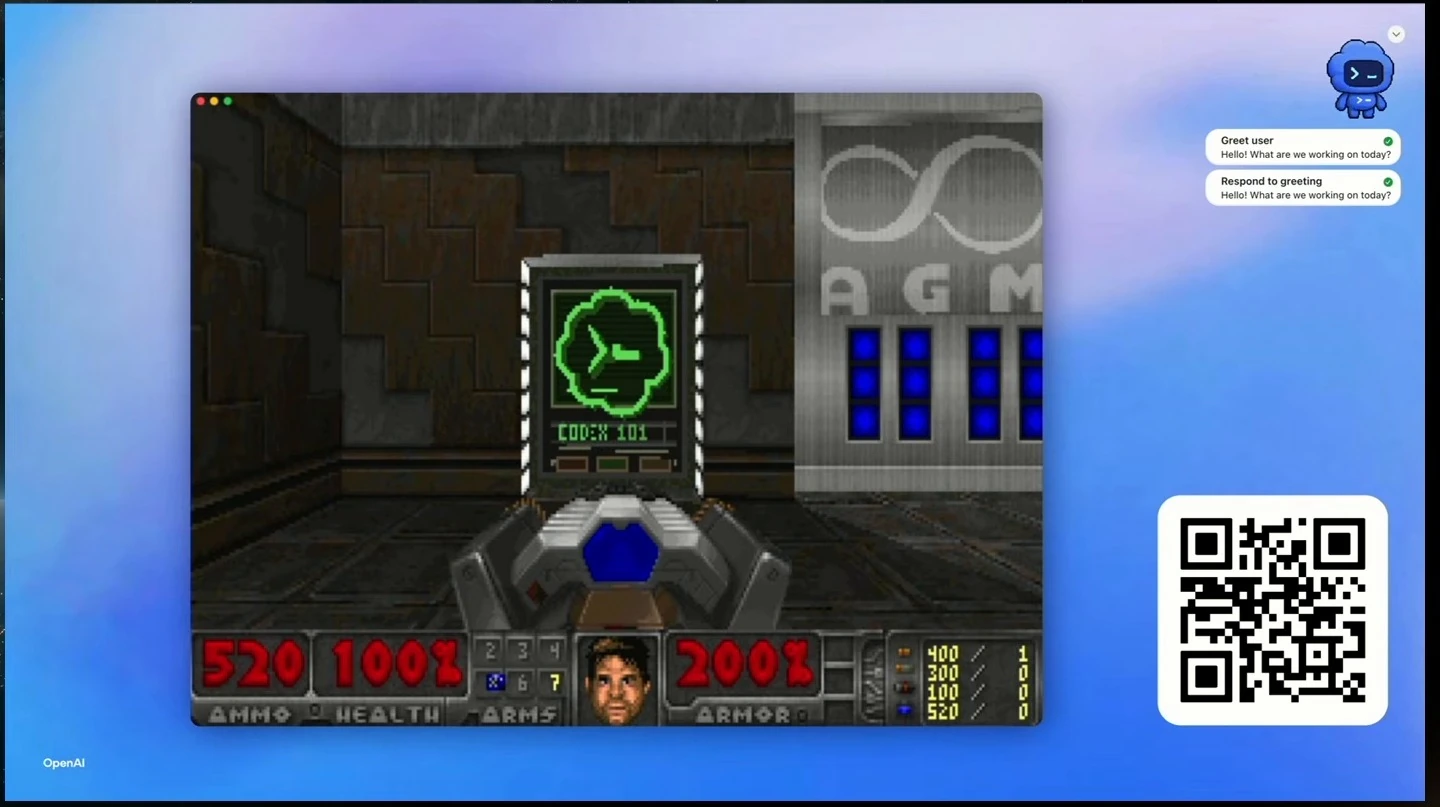

uh, C, and then it loads the Freedoom game, except that I actually manipula- had Codex change the game file. So you can see here, this is rendered natively in the video game using all of their, that game engine. Um, and if we actually interact with it here, we're booting up Codex, and again, this is rendered natively inside the, um, actual video game, and then passes the, passes it to the app server using Electron's, um, IPC protocol. So if we say hello here,

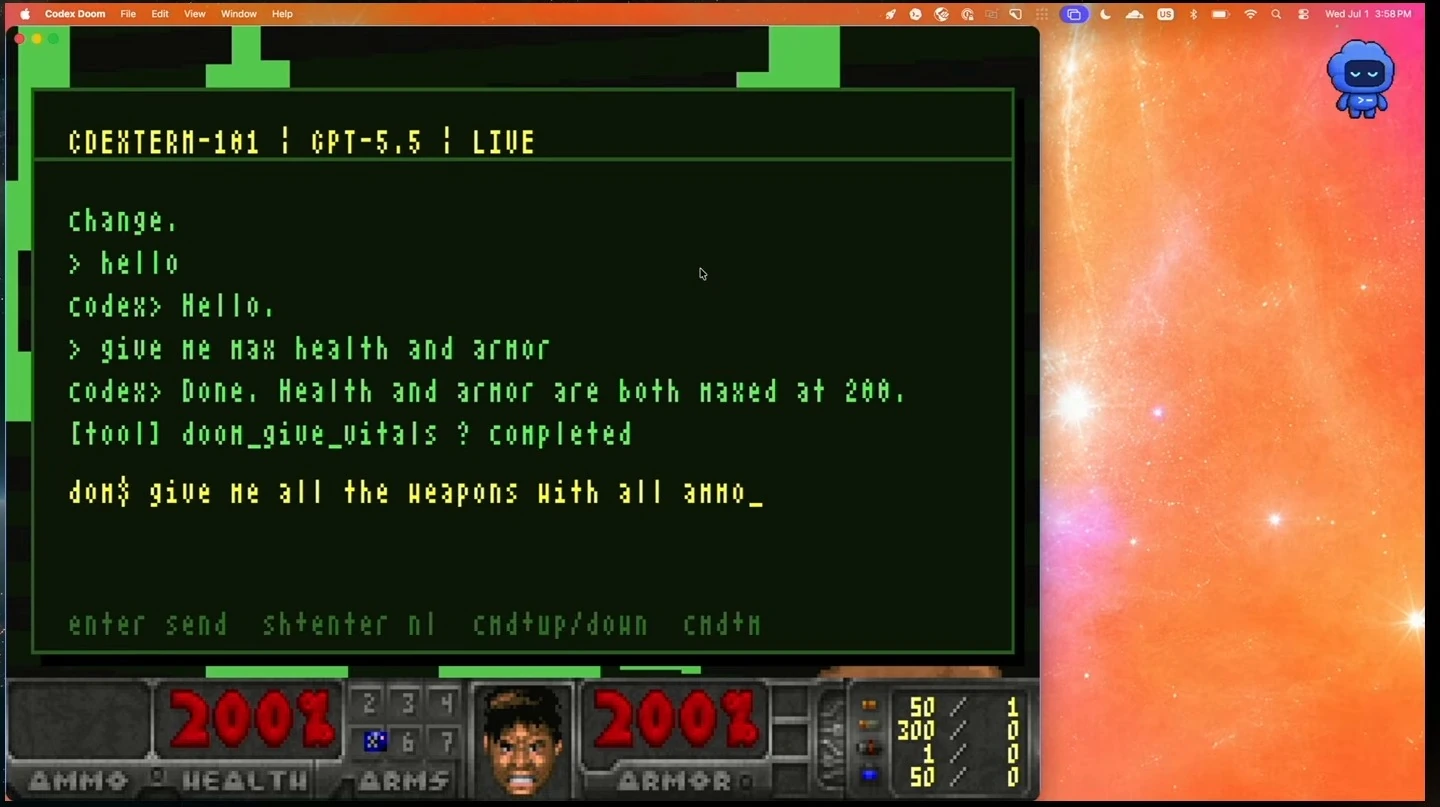

um, we can see Codex actually responding. So this is using 5.5. The fun part, though, is you can actually use dynamic tools to expose additional functionality. So naturally, um, we can get, um,

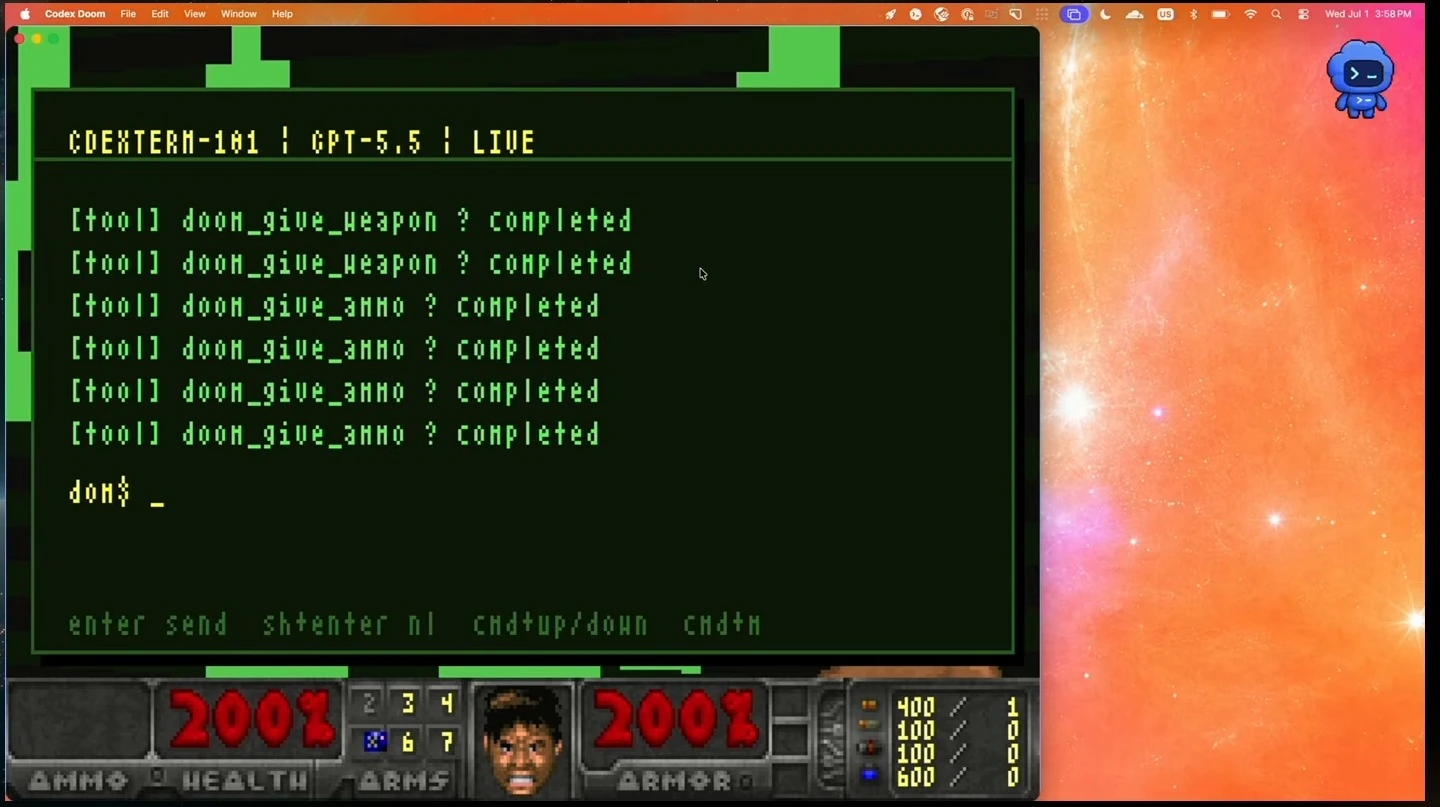

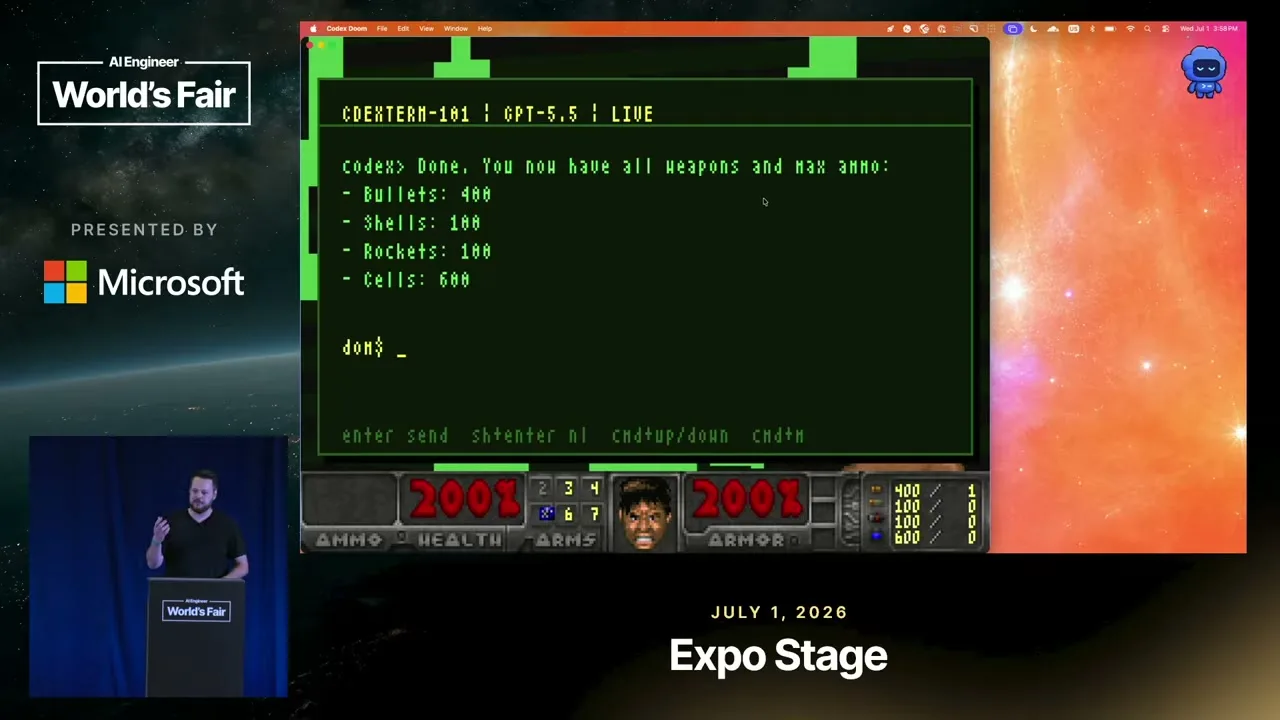

we can get all of the, um, armor and health, and it's calling the tools, gives me all that, or even, say, like, all the weapons with all ammo. Um, and it's calling all of the different tools. It's, so it's interacting with them. But again, r-remember, this is still an app server actually running on my machine, so if I say, like,

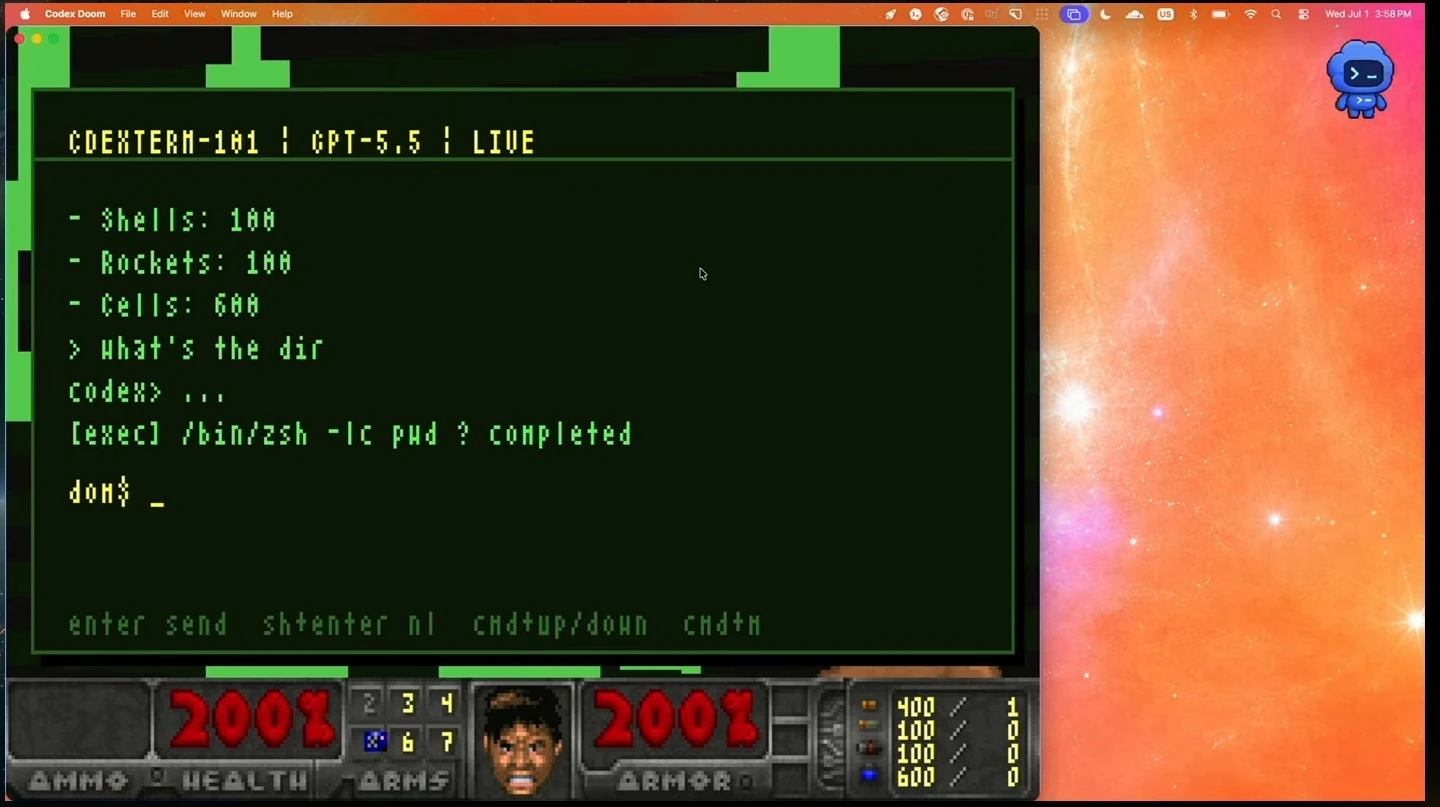

um, "What's the directory?" It's actually calling zshell, getting the current working directory, and you can see here it's r- uh, rendering. It ha- it has its own workspace. So if you want, you can vibe code directly into code, i-in-inside Doom. Uh, not sure if I would recommend it. Uh, I think the app, uh, the Codex app is slightly better for this. But you can really have fun here and, and implement your own interface.

Awesome. Uh, I talked with a couple of you already during the show about, uh, the app server, and one question that came up a lot of times is: What's the difference with Codex Exec? So if you've used the Codex CLI before, you're, might be familiar with this. There's another command called Codex Exec, which spins up a non-interactive interface for you to, uh, pass, uh, to kick off tasks to Codex. This is great for scripting. If you're building a CI/CD implementation and you want to script certain

acts like auto-fixing a PR, um, this is a great opportunity. But if you're trying to build, like, a more comprehensive client, uh, where you're interfacing, uh, where you're showing the agent, or more importantly, if you're trying to do something where you're spinning up a bunch of different, uh, Codex threads at the same time, for example, um, you're running, um, you're, you're running your own, like, eval harness, or you wanna use, like, /goal, that's where the app server really shines because you have that full control

over the harness, and you don't have to figure out your own way of parallelizing all of the Codex Exec calls rather than just sending off a bunch of, like, new thread events and spinning off tasks that way.

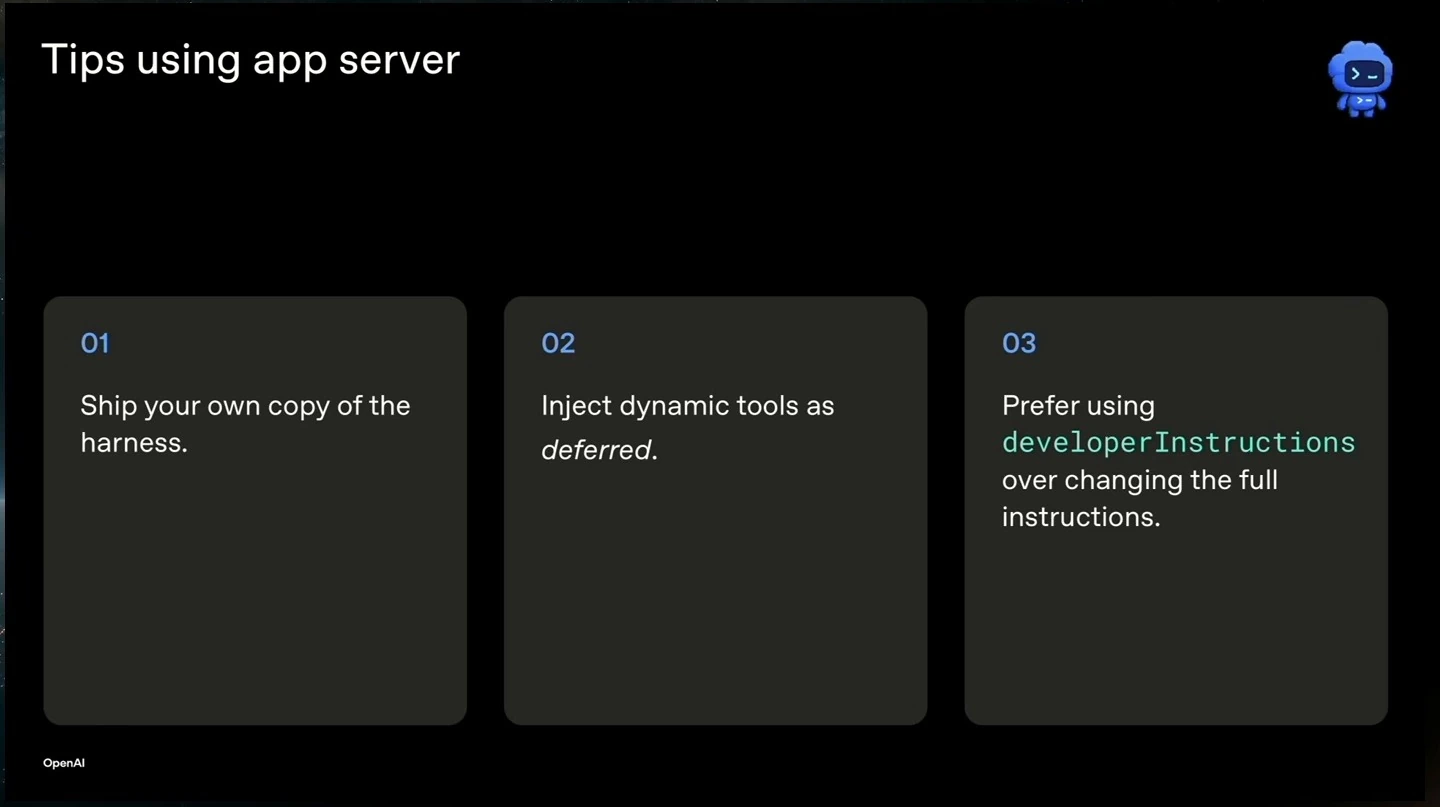

Before I let you all go to the keynote, um, I have, uh, three more tips just to recap, um, what we talked about, things that you should keep in mind if you're using the app server. The first one is you should actually ship your own version of the harness. Uh, this will eliminate so many headaches for you. If you're, if you're relying on the user's installed CLI, you're gonna constantly run into things from, uh, like, breaking changes, even though we are trying to minimize them. But if you're relying on experimental features, that might happen. Um, but you

also don't have to worry about whether a user has actually updated their version and has the latest feature that you wanna use or have them nudge the, them updating it. So ship your own version of the harness. The other part is you should absolutely expose new, um, functions as part of your interface. We do this with a Codex app, for example, for it to be able to, um, c-control itself as part of the Codex, uh, thread, like spinning up automations, et cetera. But mark them as deferred. That way, you're not polluting

the context window unnecessarily with all of the different additional functions that you're adding, and instead, still have them available for the agent without, um, necessarily confusing it. And if you are changing the instructions, try to start with over, uh, like, adding developer instructions rather than changing the base instructions. It might feel like you wanna immediately rush to, "I'm gonna write my own system prompt," but there's a lot of different things that we constantly have to think about when we're building a harness to make sure that the actual

prompt is in distribution and make sure that the agent performs well. And you're losing out on all of that if you're actually jumping in and, like, writing your own system prompt. So be careful there, uh, if you're doing that. And with that, thank you so much. Uh, thanks for taking your time. Feel free to scan that QR code if you wanna have the slides, and I'll be around for, uh, like, the next 15 minutes at the OpenAI booth if you wanna ask me any questions there. Thank you so much.
